Garden waterfall pumps come in all shapes and sizes. This article will help you learn what to look for when planning your backyard water garden, so you can create the feature of your dreams.

Garden Waterfall Pumps – Let There Be Life

Before we start the discussion, it’s a good idea to have your pond on its own dedicated GFCI protected electrical circuit. Some larger pumps can draw quite a bit of power.

First thing to do is decide what kind of pond or water garden you want. Are you picturing a quiet trickle, so you can still hear the birds singing, or a rushing falls that creates a lot of white noise. Remember when choosing a garden waterfall pump, you can always place an inline flow valve to adjust the rate of water flow. You can always slow the water down, but you can not make it flow faster than the pump will allow, so be sure to get a pump that surpasses your needs if possible.

When I built my pond, I didn’t realize the impact a rushing waterfall would have on the noise level. Now my backyard is filled with white noise. It’s a soothing sound, but I don’t hear the birds singing … or the kids arguing, so it’s not all bad!

The Technical Stuff

computer components Submersible waterfall pumps are measured by gallons per hour (gph). The higher the gph, the more powerful the pump. There is also a measurement for head height. This is the maximum height that the pump can pump from your skimmer box to your waterfall feature.

Think of it like driving a car. When you are driving down a flat road, you keep your foot on the gas at a minimum to maintain your speed. Now when you approach a hill, you have to step on the gas to maintain the same speed as you ascend. Using this logic, you will need a pump that will push enough water through and up so you can achieve your desired result. This is known as head.

When doing your final calculations, know that you will need 1′ of head for every 90 degree turn in your line, as well as 1′ of head for every 10′ of length in your return line.

Go With The Flow

Depending on the type of waterfall you desire, decide on a flow rate. Then you multiply your GPH by the width of the spillway. Here are some examples of a typical 24-inch wide waterfall spillways at different flow rates:

  • Slow flow with a 24″ spillway is 100 GPH so: 24″ X 100 GPH = 2,400 GPH
  • Moderate flow with a 24″ spillway 150 GPH so: 24″ X 150 GPH = 3,600 GPH
  • Rushing flow with a 24″ spillway is 200 GPH so: 24″ X 200 GPH = 4,800GPH

When designing and building your pond, you also will need the proper sized water line. The larger the line, the less restricted the water flow. In other words a 2″ water line will push more water through it than a 1.5″ water line, regardless of the size of your pump. Your system will only be as powerful as its weakest link. If you have a powerful pump and a small water line your flow will be hindered, as well as a large water line and a weak submersible water pump.
Below is a chart for the recommended size water line to be used for a waterfall return line based on your desired flow rate:

Choosing The Right Pump

Using all that we’ve discussed above, its time to put everything together before you make your choice of which pump to purchase. To calculate it use the following formula:

Height of the waterfall + 1′ for every 90 degree turn + 1′ for every 10′ of line used

This means you will need a pump that has your desired GPH at the given feet of head. For example:

For a moderate flowing waterfall that is 3′ high and has 2 elbows and 15′ of water line, you will need a pump that produces 3,600 GPH at 6.5′ of head. This can be found in the specs of any given pump you intend to purchase.

Building Out Your System

Another thing to be sure of, is that your pump is circulating the water completely at least once every hour. To be sure this happens get a pump whose GPH exceeds the volume of your water garden. One cubic foot of space takes 7.43 gallons of water to fill. Knowing that, depending on the shape of your pond, use the following formulas (all calculations are done in feet)

For a rectangular pond: length x width x average depth x 7.43 = Total volume in gallons

For an oval pond: 0.8 x length x width x average depth x 7.43 = Total volume in gallons

This helps to maintain a healthy pond. Also, moving water cuts down on mosquitoes and other pests.

Product Reviews

Now that you know what you are looking for, here is a comparison of some popular garden waterfall pumps, submersible and ready for action .  Any one of these will get you started in the right direction.

We are comparing a few different style pumps all with similar GPH to compare. It’s good to compare “apples to apples”. The head height to GPH ratio chart for each pump is for the whole family of that brand of pump.

I’m only comparing pumps that are in the 5200 GPH range, because that is what I am most familiar with. That is the GPH of the pump featured in the how to build a pond tutorial.

Alpine Pumps

Alpine pumps come in wide array of sizes to meet all of your needs.Alpine waterfall pump


  • Submersible water pump with energy efficient design
  • Ceramic impeller shafts for long life
  • Vortex impeller has a large pre-filter
  • Vortex can be dissembled without tools
  • Available in 2100 to 8000 GPH sizes
  • 10 in. L x 6 in. W x 7 in. H
  • Pump can be used vertical or horizontal

Alpine PAL5200 5200GPH Cyclone Pump, 33′

Aquasurge by Aquascape

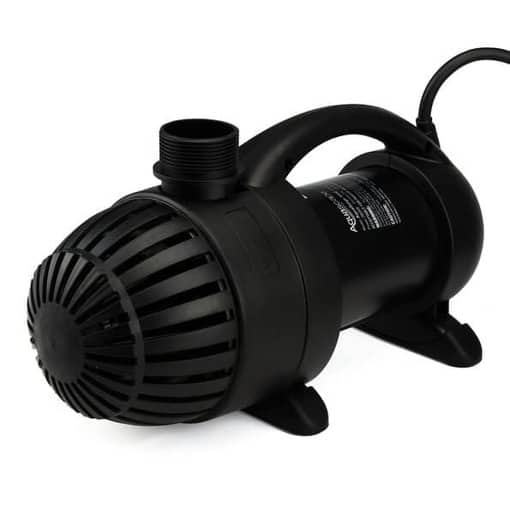

AquaSurge 5000


  • 5,284 GPH max flow rate
  • 24′ max head height
  • Asynchronous motor
  • 360 watts
  • 3 Amps
  • 20′ power cord
  • 1.5″ discharge diameter
  • dimensions 12 x 5.5 x 7 inches (LxWxH)
  • 3 year Warranty

This pump also features a variable water flow controller, so you adjust flow rate on the fly!

Aquascape AquaSurge 5000 GPH Submersible Pond Pump 91020 with Exclusive BONUS Promotional Magnet Calendar


Aqua Pulse 5200 GPH Hybrid Drive Submersible Pump – Up To 5,200 GPH Max Flow

Features:Patriot waterfall pump

  • High flow, energy efficient hybrid drive technology combines the high flow characteristics of a direct drive pump with the energy saving efficiency of a mag drive pump
  • Asynchronous drive motor can be controlled with variable speed controller (not included) that permits you to increase or decrease pump flow as needed
  • Impeller passes solids to .25″. Engineered for 24-hour continuous use; overload sensor prevents burnout
  • Contains no oil; completely safe for fish, wildlife and aquatic plants
  • 2-year manufacturer’s warranty

Aqua Pulse 5200 GPH Hybrid Drive Submersible Pump – Up To 5,200 GPH Max Flow

Monsoon by Anjon Manufacturing

MS5200 5200GPH Submersible Fish Pond Pump (This is the pump used in how to build a pond project)


  • Engineered for 24 hour continuous use, Passes solids up to 1/4″ in diameter because of the vortex impeller for tough-torque flow.
  • High quality seals for long and efficient pump life.
  • Power Cord length 30 feet, Overload sensor shut-off protection to keep pump from overheating or burning out.
  • Full 2-year warranty, Contains no oil – Fish safe.
  • 420 Watts, 5,200 GPH at 5′ – 24′ Max Head, 1.5″ OutPut.
  • Passes solids up to 1/4″ in diameter because of the vortex impeller for tough-torque flow
  • Overload sensor shut-off protection

Monsoon MS5200 5200GPH Submersible Fish Pond Pump

Side By Side Comparison of Features

It’s YOUR Vision

Whether you decide on a babbling brook, or white water falls, your garden waterfall pump is truly the heart of your project. It’s what brings your garden pond to life. This is about you and your vision of the little piece of paradise you will be creating. If you have any first hand experience with any of these products, or have a suggestion for a better one, please leave a comment or question below and i will be happy to get back to you as soon as possible.  Best of luck with your projects!
